Name

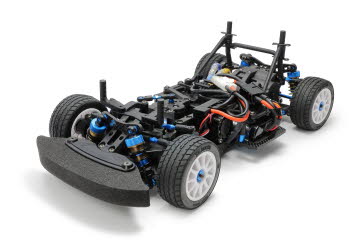

M-08R Chassis Kit 1:10 Scale RC kit

Extended Description

Description
The M-08R adds a plethora of race-spec parts to the balanced, compact RWD M-08 Concept chassis: an example being the hopped-up drivetrain with a ball differential, universal shafts featuring low-friction cross joints and lightweight aluminium swing shafts, plus 5mm wheel hubs. Turnbuckle shaft suspension arm and steering setup components simplify fine-tuning of the M-08R, and titanium-coated shafts are a durable inclusion in the kit. Carbon fibre damper stays are paired with M-Chassis big bore aluminium dampers+ featuring dedicated blue anodized top and bottom caps for a touch of class, while a 20-gram ballast weight is included to get the chassis feeling just how you want it to.

Featured Drivetrain Components
Full ball bearings
Ball differential (52T)
33mm lightweight aluminium swing shafts
Cross joint for LF assembly type universal shafts
06 module fluorine coated 20T pinion gear
M-08 Concept aluminium shafts
M-Chassis reinforced freewheel axles
5mm clamp-type wheel hubs
Suspension
Carbon fibre damper stays (front/rear)
Reinforced D parts (suspension arms)
Aluminium turnbuckle shafts
Titanium coated suspension shafts
5x5mm, 5x11mm hard hex head ball connectors
M-Chassis big bore aluminium dampers+
3x 1.3mm-hole pistons
4mm aluminium serrated wheel nuts (blue)
5mm reinforced open face adjusters

Chassis
Carbon fibre battery holder
Carbon fibre body mount base
Reinforced K parts (gearbox)
Chassis balance weight (20g)
Hi-torque servo saver
Aluminium ball connectors (blue)
Hex head screws

Specifications
Scale is 1:10
Length: 319mm (with 225mm wheelbase), width: 165mm
Alterable wheelbase: 210mm, 225mm, 239mm
Monocoque frame with separate front and rear sections
Midship motor, rear-wheel drive
Ball differential
3-piece steering tie-rod
4-wheel double wishbone suspension
M-Chassis big bore aluminium dampers+
Gear ratio = 5.776:1 (using kit 20T pinion); 8 ratios between 6.795:1 and 4.813:1 are possible with separately sold pinions)
Electronic speed controller (ESC) is sold separately.

Separately Required Items
Body
Type 540 motor (brushless is recommended)
Tyres
2-channel R/C system w/ESC
R6/AA/UM3 batteries for transmitter
Battery pack & charger

SKU/Part Number

47480

Price

£299.99
